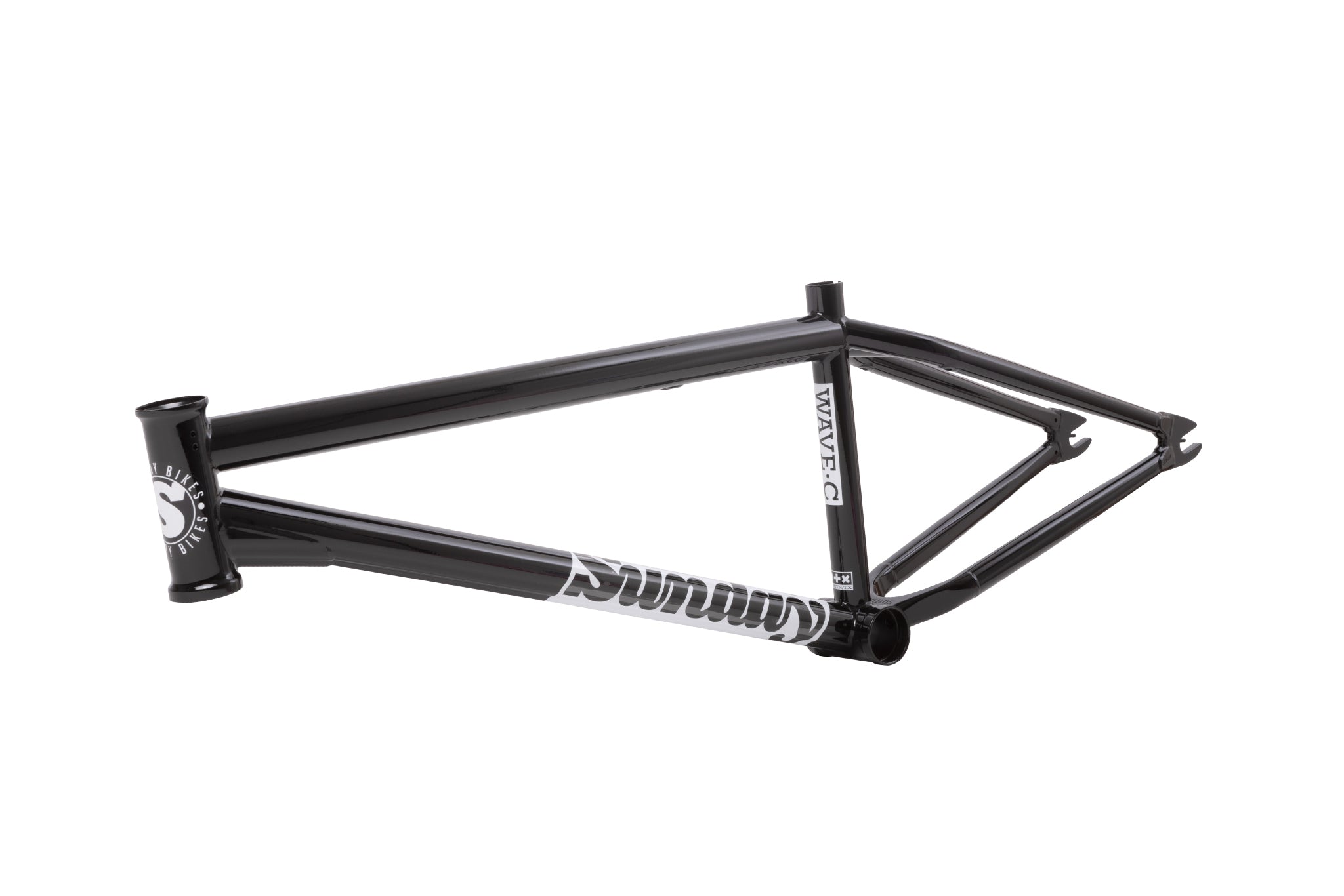

Sunday Wave C 24" FrameGloss Black

It's been over a decade since we have offered a 24" aftermarket frame, so we are stoked to say that an all-new WAVE C is being re-introduced to our lineup. Perhaps we were too early with this style of shred-able frame back in 2011, but the 24" scene has grown a lot since (maybe thanks to us). Those who are looking for a dialed 100% 4130 chromoly aftermarket 24" frame, now have a great option in the WAVE C.

Features

• 100% 4130 Chromoly Frame

• Proven 24" geometry that rides like a pro-level 20" bike

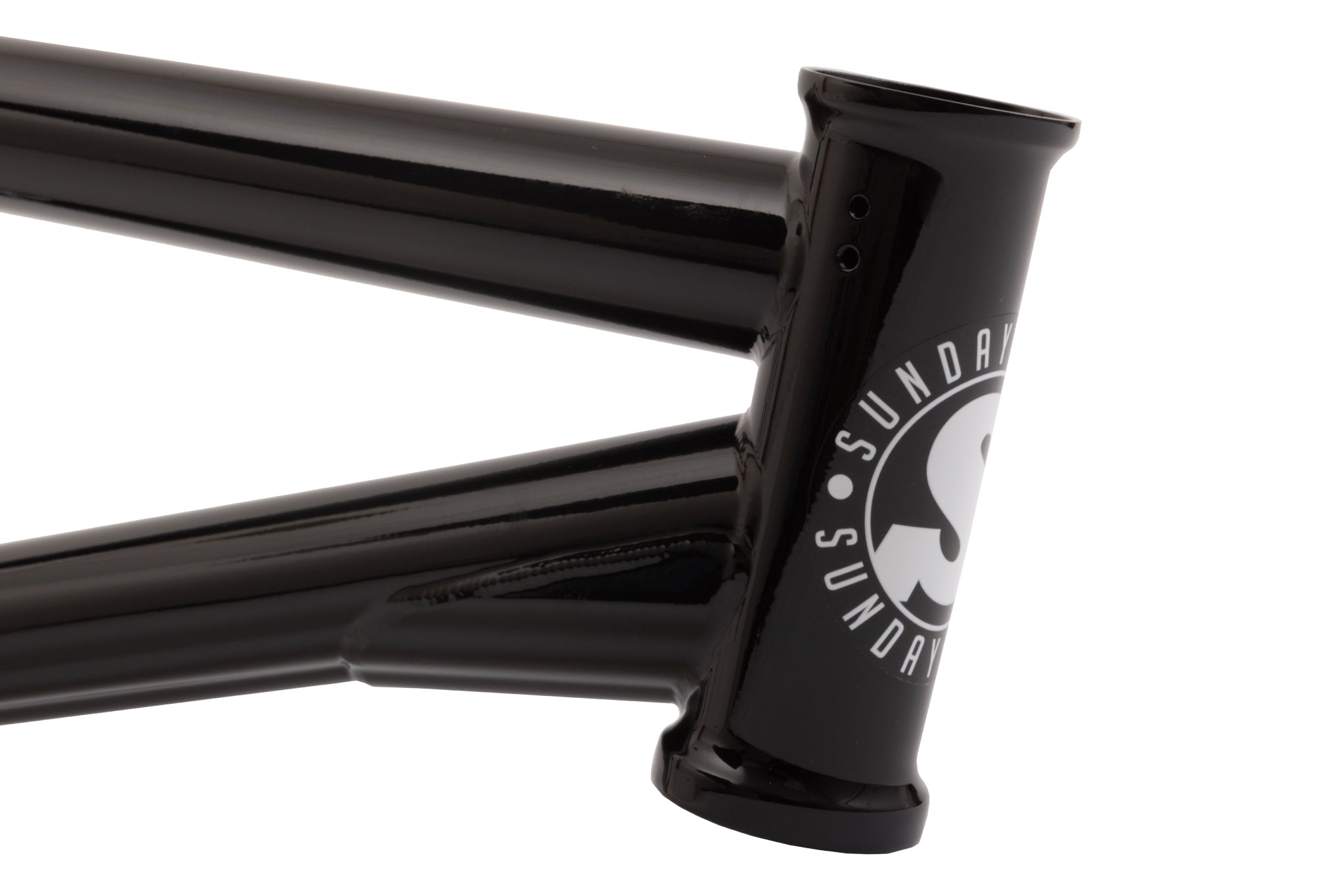

• Wave Down Tube:
  Down tube dents can significantly weaken the front end of your bike. The Wavelength's double-butted, 1.45" diameter down-tube features Sunday's proven Wave shaping to help fight against denting from rails, ledges, coping and whatever else happens to get thrown at it.

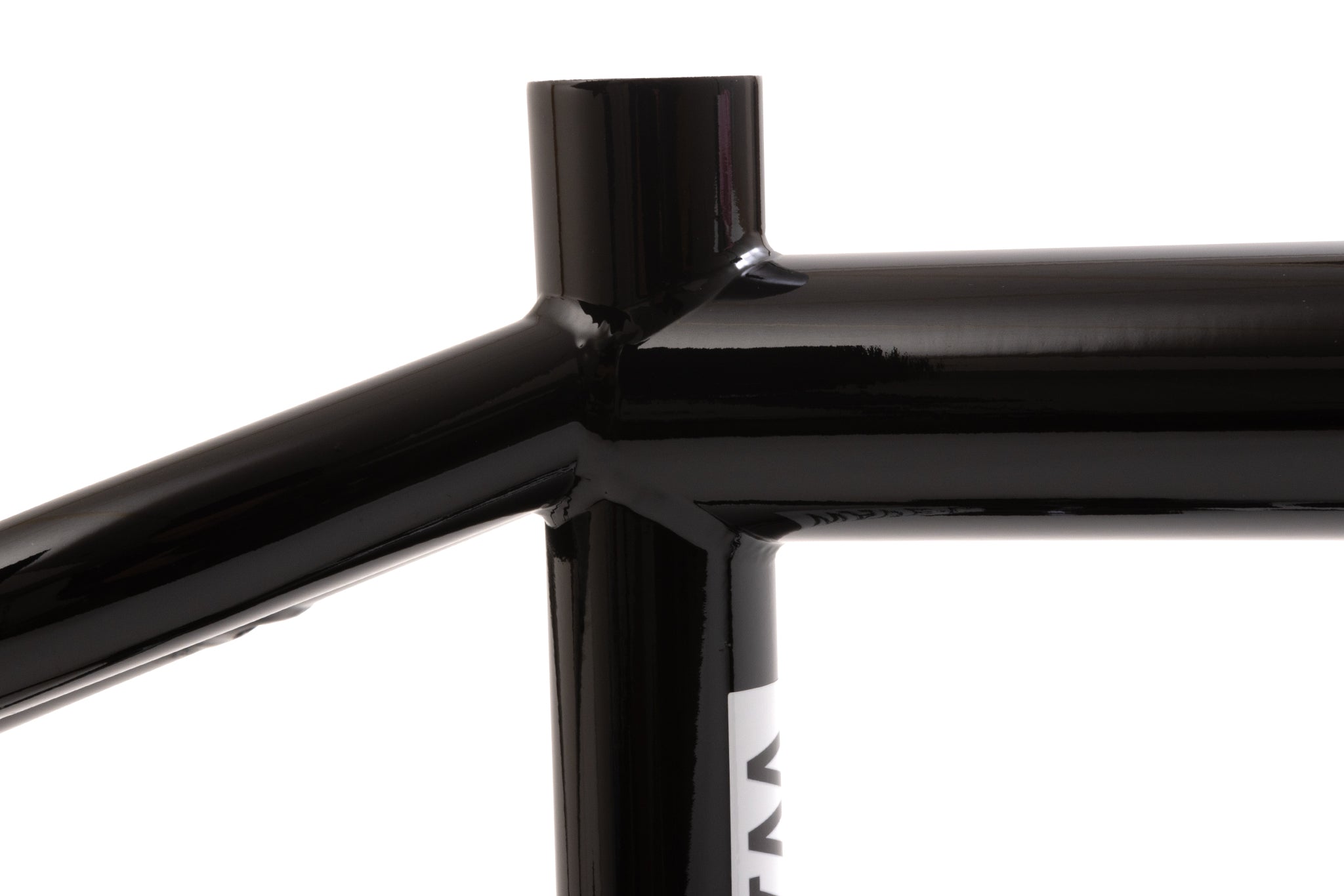

• Miter Cut Top Tube:
  A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.

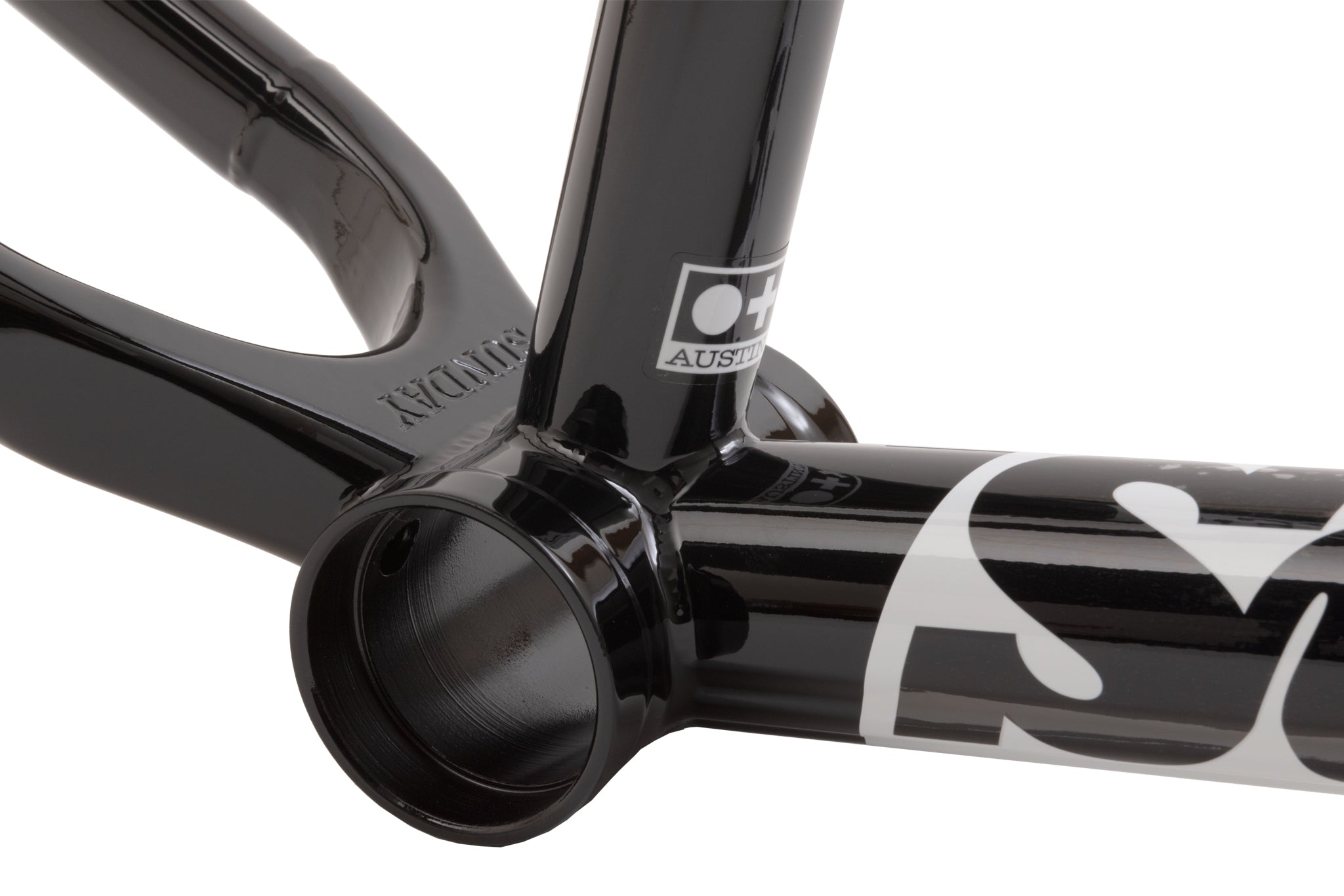

• Hollow Chainstay Yoke:
  An all new yoke design allows for an ultra-short chainstay length for improved maneuverability

• Tapered Chain & Seat Stays:
  Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.

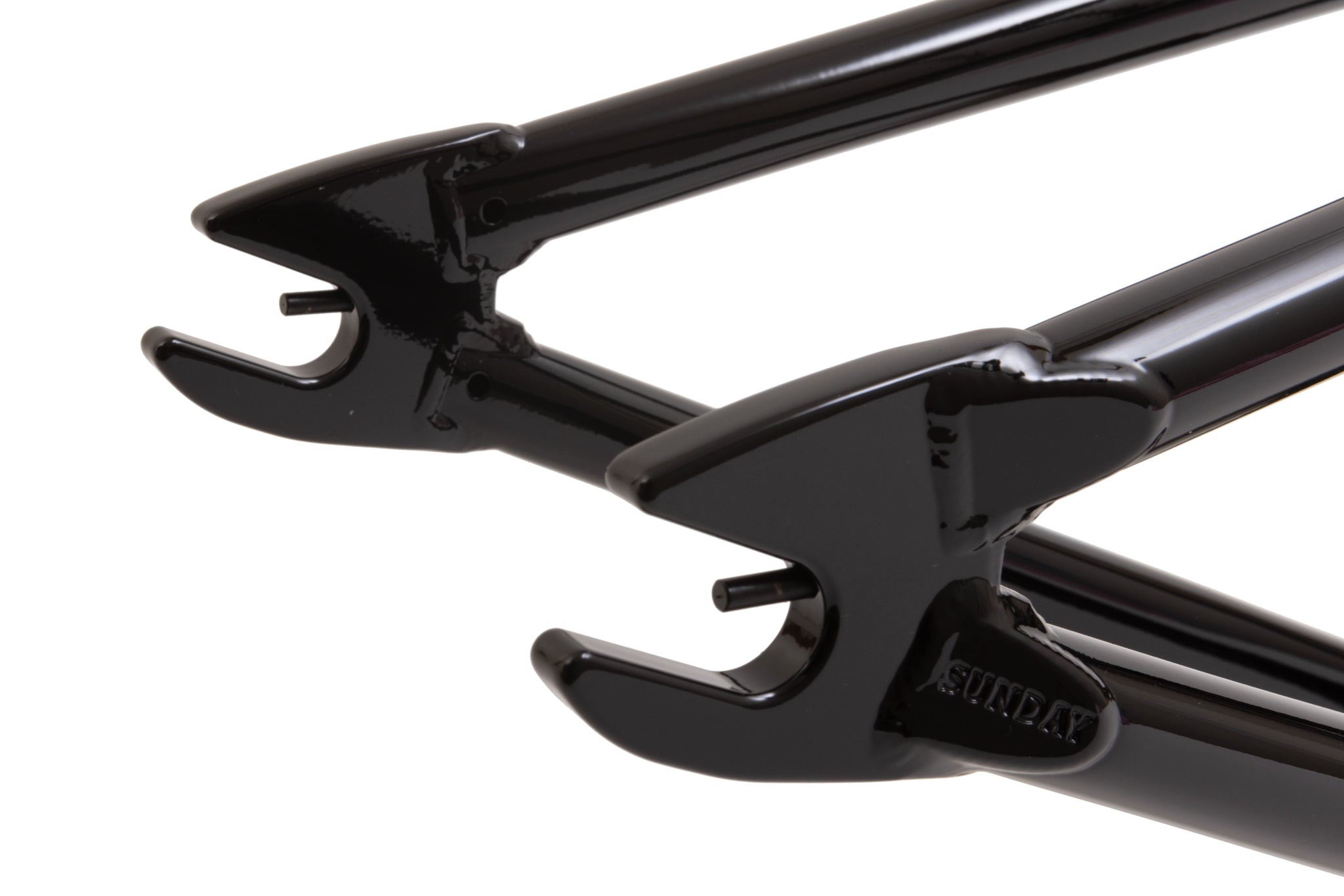

• Hollow Dropouts with Chain Tensioners:
  Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in place as well as simplify wheel removal.
• Removable Brake Hardware:
  Refined removable brake mounts and cable channel improvements that provides benefits with or without a brake setup.
• Rust Proof Coating:
  All Sunday frames are rust-proofed with "Black Magic" coating before the final finish is applied. It is lightweight and the best anti-corrosion processing that's offered today.

Geometry

Top Tube Length: 22"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 14.1"-14.35”
Bottom Bracket Height: 13”
Standover: 9.125”
Tire Clearance: 2.2”
Head Tube: 4.8”
Weight: 5.9 lbs
Gear Ratio: 25/10
