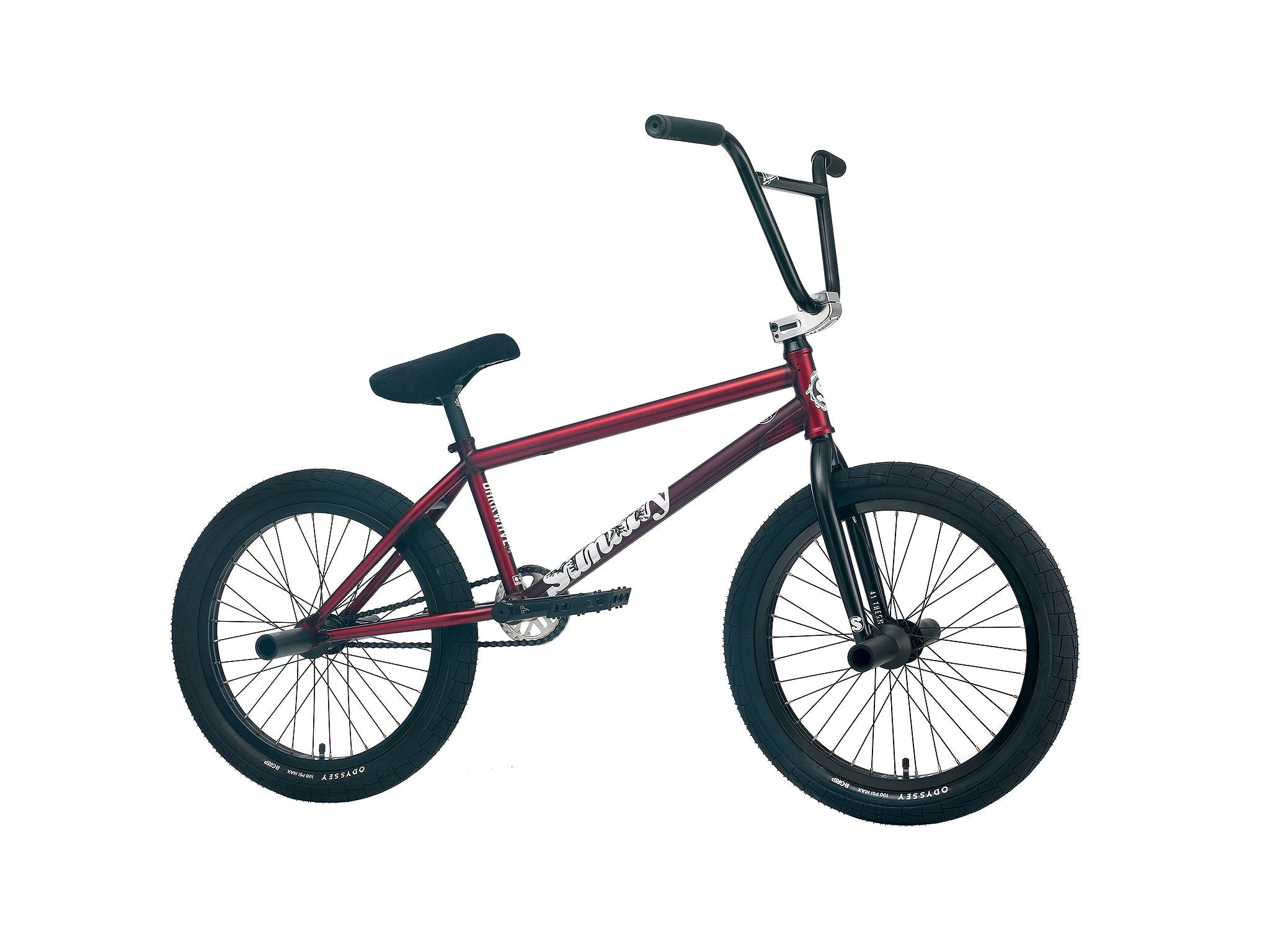

2022 Darkwave ‑ Broc Raiford AuthenticMatte Trans Red with 21.25" tt in LHD

Show Options and Buy

Regular price $1,349.99 Reg: $0.00 Save: $-1,349.99

21.25" LHD Matte Trans Red

Buy Online


- +

Buy Local

Find a Dealer Local inventory is different from what's available online. Please check with your local dealer before making an online purchase. If we have it in stock, that means they can too!

Building on Broc Raiford’s addition to the team, we are introducing the new Broc Raiford Darkwave Authentic. This model is 100% aftermarket parts and exactly what Broc rides, all the way down to his signature Odyssey product, left hand drive setup and top tube size.

Key Features

  • 100% Aftermarket Parts Kit
  • Lifetime Warranty on Bars, Forks, and Cranks
  • Sunday Darkwave Frame
  • Sunday Darkwave 41-Thermal Forks
  • Odyssey BROC 41-Thermal Bars
  • Odyssey Thunderbolt 41-Thermal Cranks
  • Odyssey Broc v2 Stem
  • Odyssey Clutch v2 Freecoaster
  • Odyssey Vandero Pro Front Hub
  • Odyssey Hazard Lite Rims
  • Odyssey Broc Tires with R-Grip

Specifications

Frame: Sunday Darkwave, 21.25" TT, 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
Fork:
 Sunday Darkwave, 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset
Handlebar: Odyssey BROC Bar, 41-Thermal, aftermarket bar
Stem: Odyssey BROC V2 Stem, 50mm
Headset:  Odyssey Pro Conical, 1-1/8"
Headset Cap:  Sunday aftermarket, aluminum
Brake Lever:  Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Linear Quik Slic
Grips: Odyssey Broc Raiford
Seat: Odyssey Broc Raiford Signature, Pivotal
Seat Alternate: Odyssey Big Stitch, Pivotal
Seat post:  Odyssey Pivotal
Seat Clamp: Integrated
Sprocket: Odyssey La Guardia Sprocket, 28T
Cranks: Odyssey Thunderbolt, 170mm, 100% chromoly, 41-Thermal, LHD
BB Parts: Odyssey Sealed, Mid, 22mm
Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Hazard Lite, 20", 36H
Front Hub: Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
Rear Hub: Odyssey Clutch V2 freecoaster, 36H, 14mm female axle w/ 9T driver, LHD, non-drive side plastic guard
Spokes: 14g steel, black
Tires: Odyssey Broc Tire, 20 x 2.4" (F & R)
Chain: Odyssey Bluebird Half-Link
Approx. Weight: 24.97lbs (brakeless)

Frame Geometry

Top Tube Length: 21.25"
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 13.25"-13.5”
Bottom Bracket Height: 11.75"
Standover: 9.25”

Handlebar Geometry

Rise: 9.8"
Width: 29"
Backsweep: 10°
Upsweep: 2°

    *Specs subject to change without notice.
