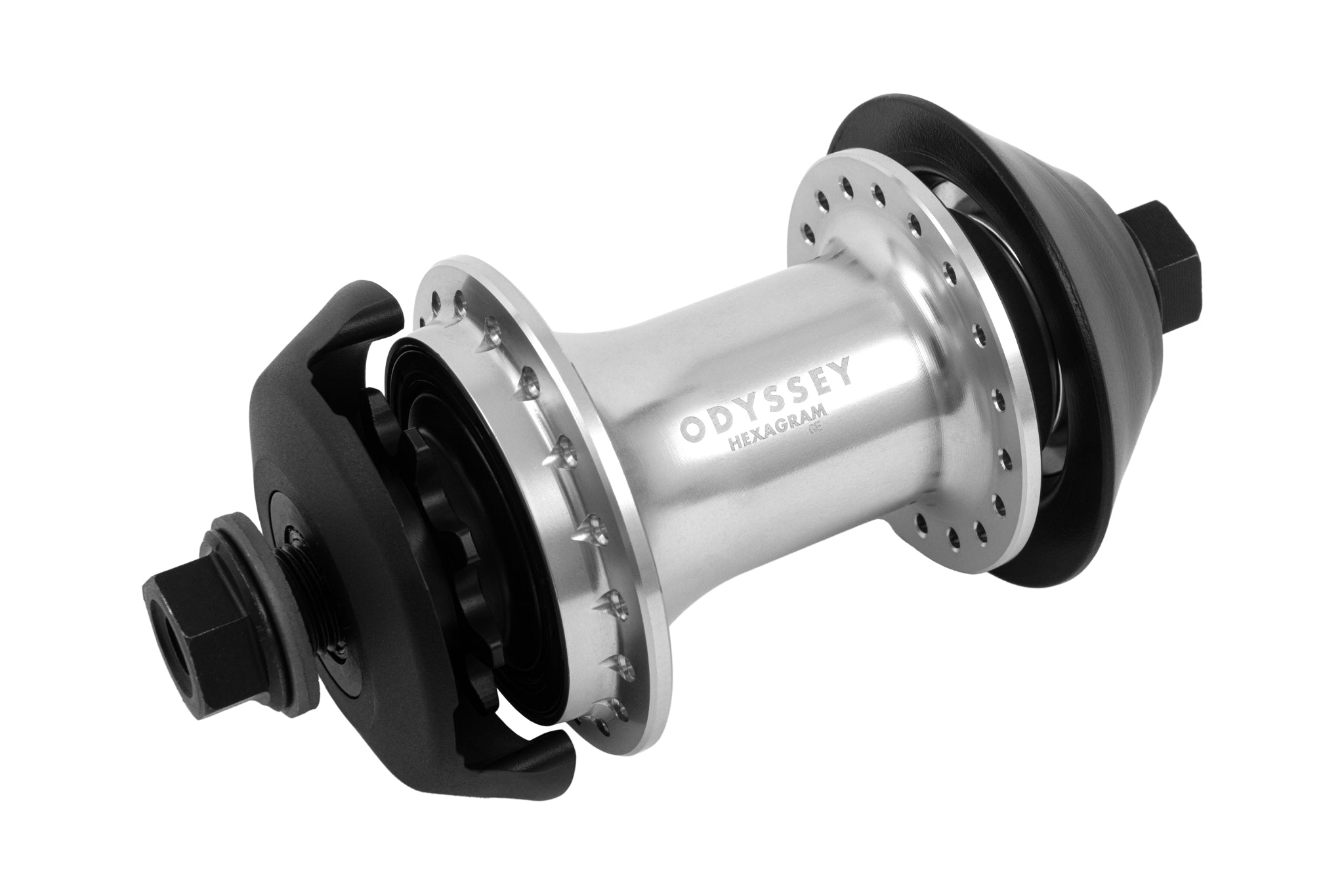

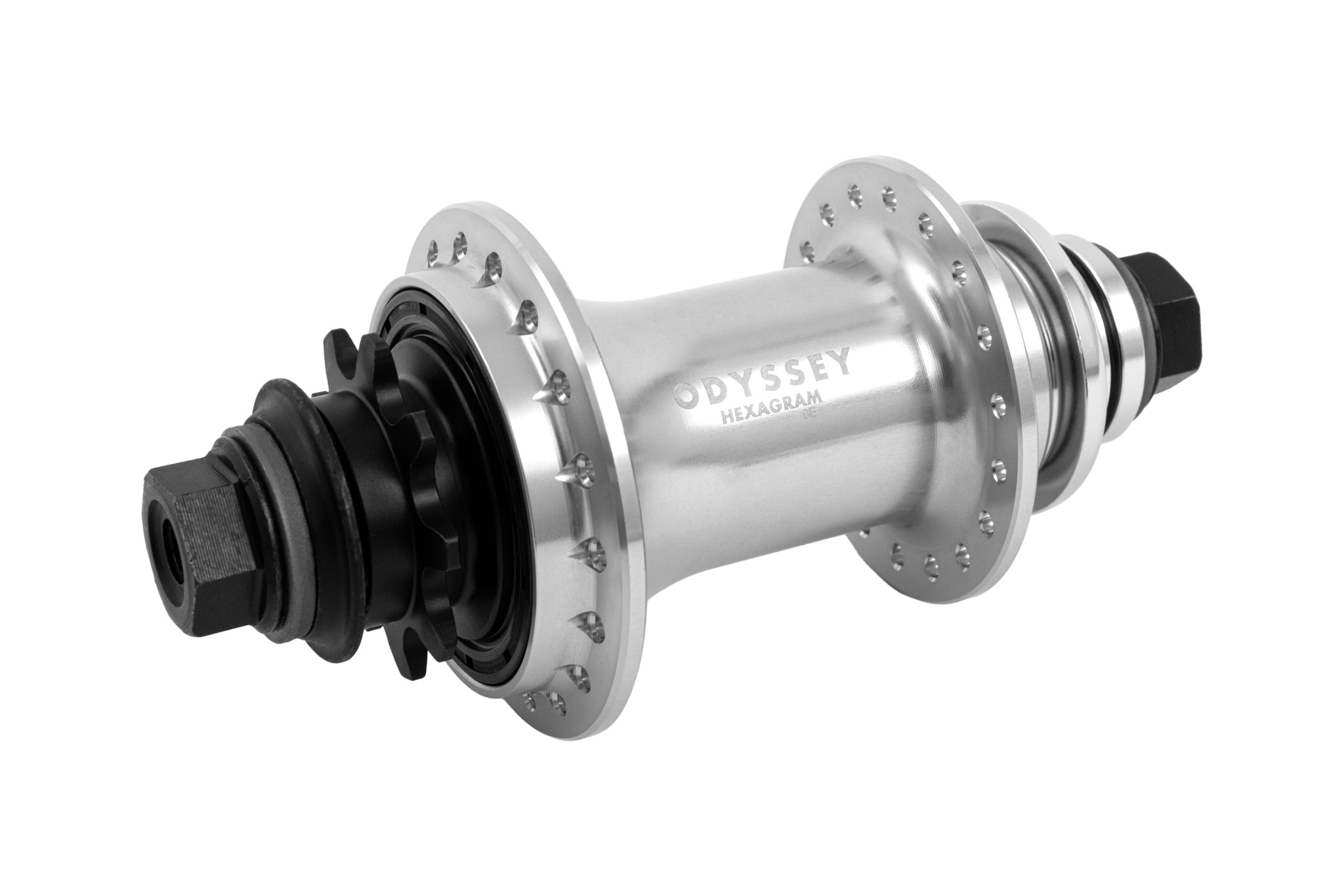

Odyssey Hexagram Cassette HubAnodized Silver

The Hexagram is an all-new, lightweight freestyle cassette hub featuring faster, alternating 6-pawl engagement that is RHD/LHD switchable and comes with plastic drive and non-drive side guards.

Features

• 7075-T6 aluminum hub shell

• 6 Pawls with alternating 3 Pawl engagement
  • Improved, faster engagement than traditional 3 Pawl designs
• All-new 9T driver design with improved durability
  • Sealed cartridge bearing and precision needle roller assembly
  • Proven LHD/RHD square tooth profile
  • Simplified service procedure

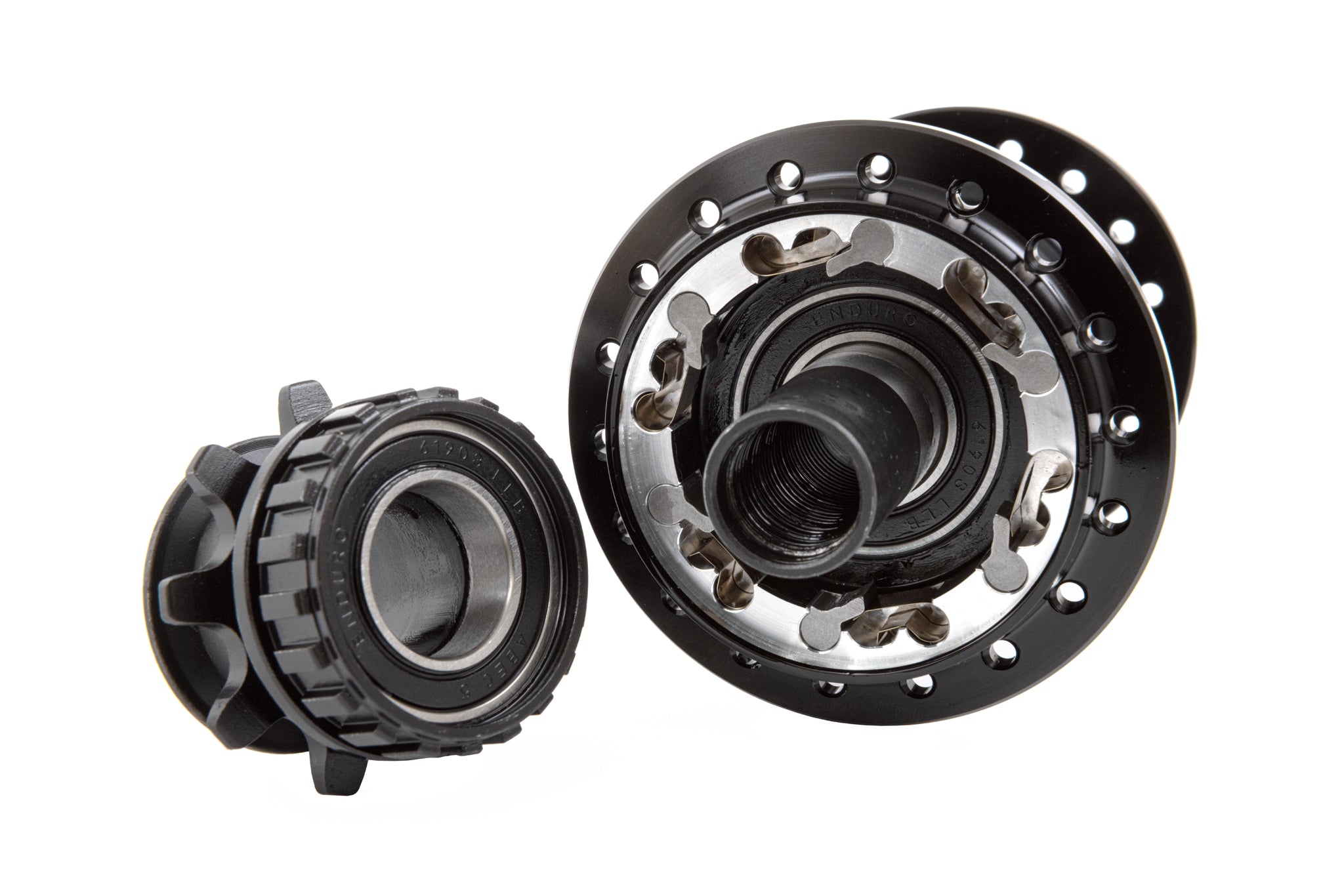

• Pawls and springs mount in hubshell
  • Keeps driver simple and low maintenance
  • Makes swapping pawls and springs much easier
  • LHD/RHD switchable
  • Alternating 3 pawl engagement
• Drive-side and Non-drive-side guard compatibility

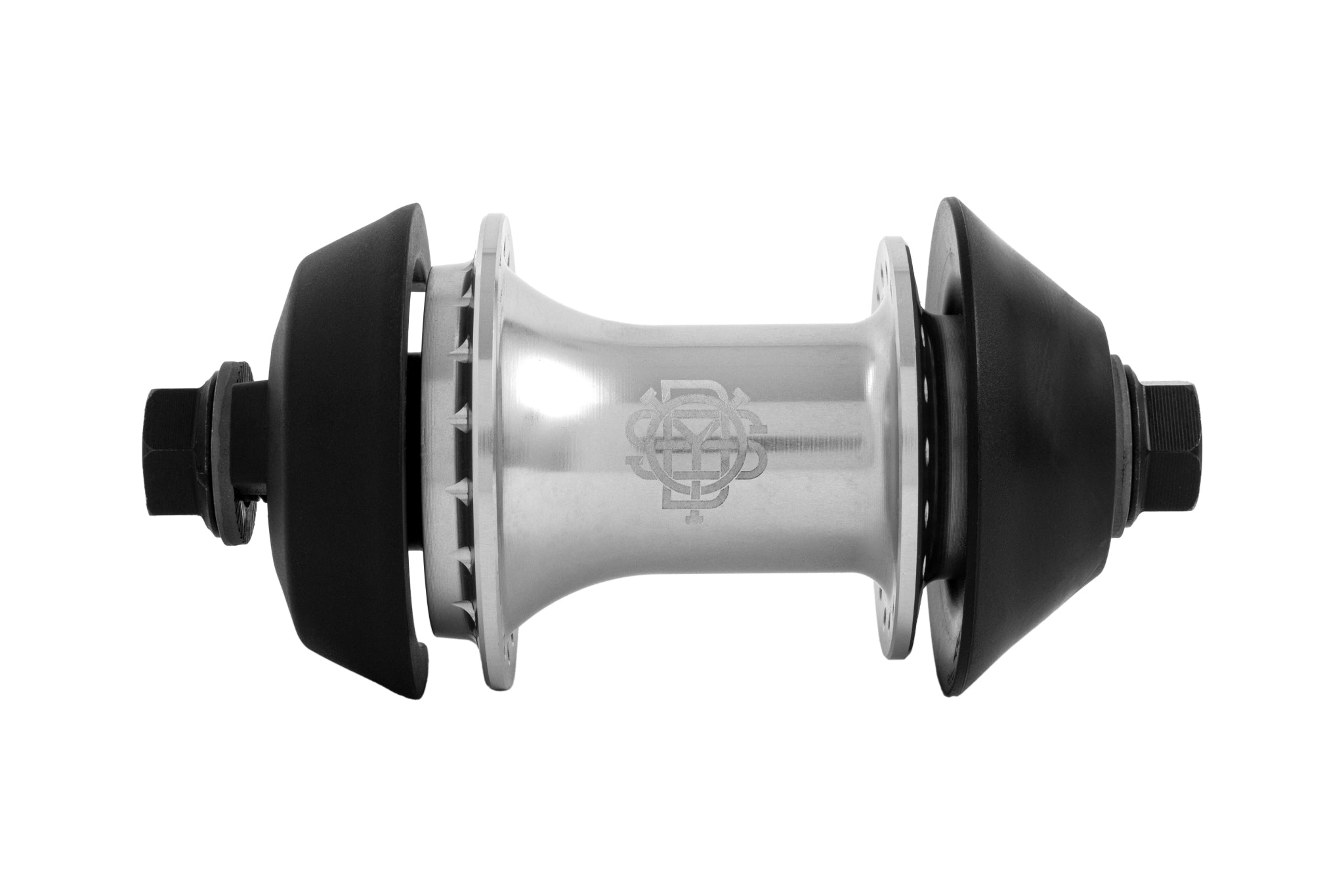

  • PC guards included for both sides
  • Slim NDS collar available separately for clean look without guards
• 6903 hubshell bearings
  • Easily obtainable, available at most bike shops, often on-hand
  • Easy knock-out/press-in serviceability
• 17mm 4130 chromoly inbound axle with 4130 chromoly 14mm bolts

SPECS

Driver: 9T, RHD/LHD Switchable
Axle: 4140 chromoly with in-bound 14mm bolts
Spoke Configuration: 36-Hole
Color: Black

WHEEL BUILDING INFO
Drive Side Effective Flange Diameter: 55mm
Non-Drive Side Effective Flange Diameter: 48mm
Drive Side Flange to Center: 28mm
Non-Drive Side Flange to Center: 26mm

BEARINGS
Hub Shell Non-Drive: 6903 Sealed
Driver: Sealed Precision Caged Needle Roller
